-3,210.00

MSI Z270 Gaming Plus LGA1151 ATX Motherboard

SKU: N/A
  • ATX Form Factor
  • Intel Z270 Chipset
  • LGA1151 Socket
  • 4 x Dual-Channel DDR4-3600 (OC)
  • 6 x SATA III, 1 x M.2
  • 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x4
  • 4 x USB 3.0, 2 x USB 2.0
  • DisplayPort, DVI-D, and VGA
  • Realtek ALC892 Audio Codec
  • AMD CrossFire Support

19,200.00 15,990.00

Out of stock

Add to Compare

Description

CPU

• Supports 7th/6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151

Chipset

• Intel® Z270 Chipset

Main Memory

• 4 x DDR4 memory slots, support up to 64GB
– 7th Gen processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz*
– 6th Gen processors support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133 MHz*
• Dual channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer www.msi.com for more information on compatible memory.

Slots

• 2 x PCIe 3.0 x16 slots (supports x16/x4 mode)
• 4 x PCIe 3.0 x1 slots


Multi-GPU

• Supports 2-Way AMD® CrossFire™ Technology


Onboard Graphics

• 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
• 1 x DisplayPort, supports a maximum resolution of 4096×2304@24Hz, 2560×1600@60Hz, 3840×2160@60Hz, 1920×1200@60Hz

Storage

• Intel® Z270 Chipset
• 6 x SATA 6Gb/s ports*
• 1x M.2 slots (Key M)
– Support up to PCIe 3.0 x4 and SATA 6Gb/s
– Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**
– Supports 2242/ 2260 /2280/ 22110 storage devices
– Intel® Optane™ Memory Ready for all M.2 slots
• Supports Intel® Smart Response Technology for Intel Core™ processors

* The SATA1 port will become unavailable when M.2 SATA SSD has been installed in M.2 slot.
** The Turbo U.2 Host Card is not included, please purchase separately.
***Intel® Optane™ Technology is only supported when using 7th Gen processors. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID (optional)

• Intel® Z270 Chipset
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

• Intel® Z270 Chipset
– 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
– 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio

• Realtek® ALC892 Codecr
– 7.1-Channel High Definition Audio

LAN

• Intel® I219-V Gigabit LAN controller

Internal I/O Connectors

– 1 x 24-pin ATX main power connector
– 1 x 8-pin ATX 12V power connector
– 6 x SATA 6Gb/s connectors
– 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
– 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
– 1 x 4-pin CPU fan connector
– 1 x 4-pin water pump fan connector
– 4 x 4-pin system fan connectors
– 1 x Front panel audio connector
– 2 x Front panel connectors
– 1 x TPM module connector
– 1 x Chassis Intrusion connector
– 1 x Serial port connector
– 1 x Parallel port connector
– 1 x Clear CMOS jumper

Back Panel I/O Ports

– 1 x PS/2 mouse & keyboard combo port
– 2 x USB 2.0 ports
– 1 x VGA port
– 1 x DVI-D port
– 1 x DisplayPort
– 1 x LAN (RJ45) port
– 4 x USB 3.1 Gen1 Type-A ports
– 6 x OFC audio jacks

Dimension

• 12.0 in. x 8.9 in. (30.5 cm x 22.5 cm)
• ATX Form Factor

Mounting

• 6 mounting holes




Z270 GAMING PLUS back IO
  1. PS/2 GAMING Device Port
  2. VGA Port
  3. Intel® Gigabit LAN Port
  4. USB 3.1 Gen1 Type-A
  5. HD Audio Connectors
  6. USB 2.0 Port
  7. DVI-D Port
  8. Display Port
  9. VR Ready USB 3.1 Gen1 Ports

Specifications

  • Socket
    1151
  • CPU (Max Support)
    i7
  • Chipset
    Intel® Z270 Chipset
  • DDR4 Memory
    3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz
  • Memory Channel
    Dual
  • DIMM Slots
    4
  • Max Memory (GB)
    64
  • PCI-Ex16
    2
  • PCI-E Gen
    Gen3
  • PCI-Ex1
    4
  • SATAIII
    6
  • M.2 Slot
    1
  • RAID
    0/1/5/10
  • TPM (header)
    1
  • LAN
    10/100/1000*1
  • USB 3.1 ports (Front)
    4(Gen1, Type A)
  • USB 3.1 ports (Rear)
    4(Gen1, Type A)
  • USB 2.0 ports (Front)
    4
  • USB 2.0 ports (Rear)
    2
  • Serial ports(Front)
    1
  • Audio ports (Rear)
    Realtek® ALC892 Codec
  • DisplayPort
    1
  • DVI-D
    1
  • VGA
    1
  • DirectX
    12
  • Form Factor
    ATX
  • CrossFire
    Y

Overview

MSI PERFORMANCE GAMING

GAME IN STYLE

Unlimited customization options and packed with exclusive gaming features, MSI PERFORMANCE GAMING motherboards offer the best possible gaming experience.

Powered by FNATIC

 We are proud to be a part of the MSI GAMING testing program to help give gamers the best hardware to play games at the highest level.

Olof ‘olofmeister’ Kajbjer, Fnatic CS:GO Team

MSI GAMING Certified

COOLING

STAY COOL WHILE GAMING

Cooling your PC is essential for reliable performance. We’ve made sure to include enough fan headers with full control to allow you to cool your system any way you want.

6x fan headers
DC/PWM mode
Full fan control
Watercooling ready

GAMING FEATURES

YOUR IN-GAME ADVANTAGE

Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.

Gaming Hotkey
Gaming Device Port
Game Boost
Multi-GPU

STORAGE

BE THE FIRST ON THE BATTLEFIELD

This MSI GAMING motherboard supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies.

1x M.2
Ultra-fast storage caching

VR

IMMERSE YOURSELF INTO VIRTUAL WORLDS

Integrating the very best of cutting edge technologies on MSI hardware provides a smooth VR ride. Through joint efforts with major VR brands, combined with unique MSI features geared to VR, MSI brings gamers and VR professionals a vivid and realistic experience in which content truly comes alive.

One click VR

AUDIO

SOUND THAT PULLS YOU INTO THE GAME

Get the most immersive sound experience when gaming. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most exciting gameplay.

Audio Boost
Audio capacitors

GAMING LAN

DOMINATE THE GAME WITH THE LOWEST LATENCY

Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.

Intel® gaming LAN
Bandwidth management

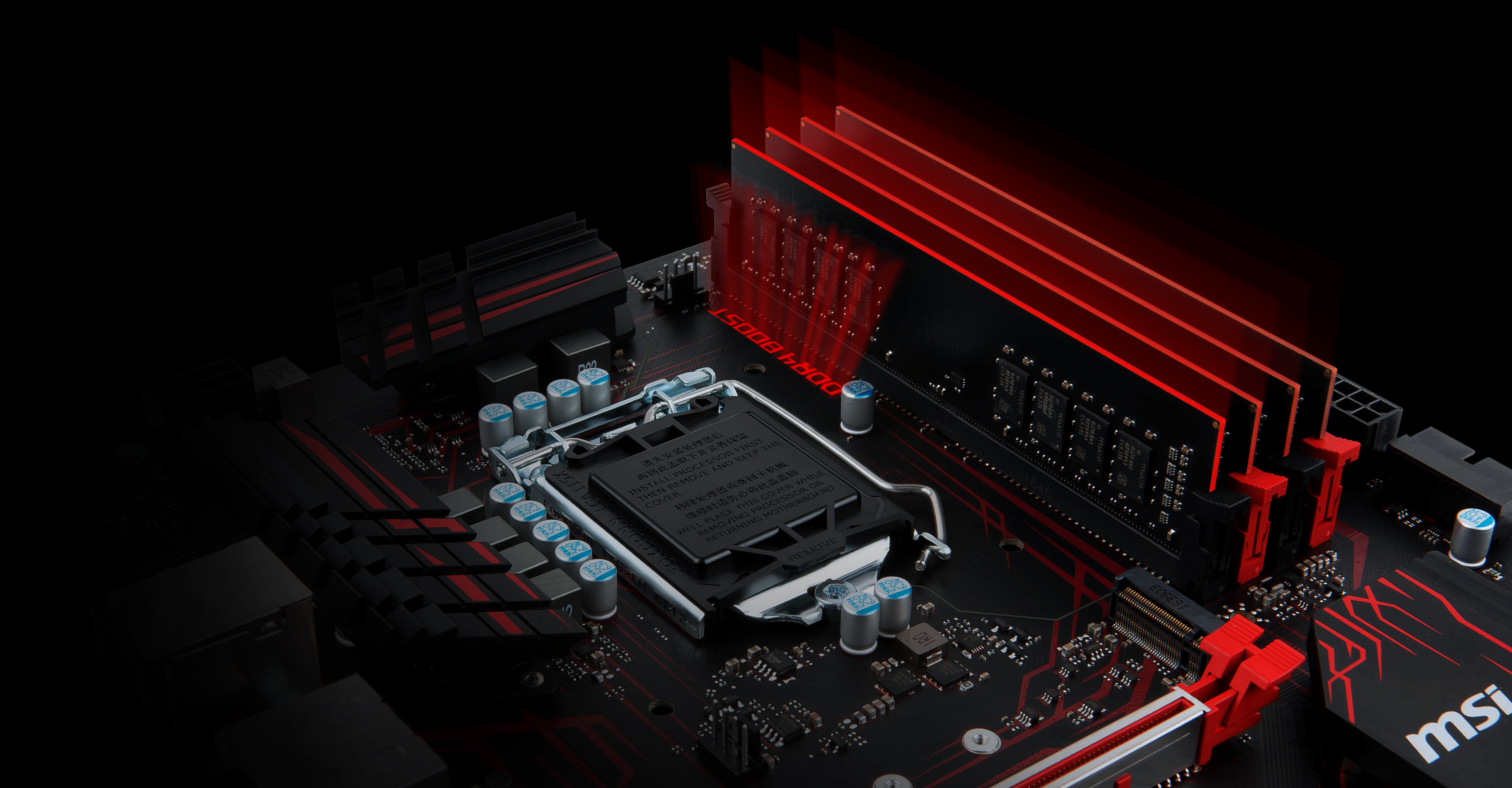

MEMORY

UNMATCHED MEMORY PERFORMANCE

MSI motherboards are crammed with features to fuel your gaming rig’s memory with more speed, higher overclockability and increased stability.

Optimal layout
100% compatibility
XMP

TUNING

DESIGNED FOR LIMITLESS TUNING

Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.

For power users
For overclocking

USB

MAXIMIZE YOUR USB DEVICE PERFORMANCE

Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds up to 10Gb/s!

Front USB 3.1
Boost your USB

SOFTWARE

APPS TO GREATLY IMPROVE EFFICIENCY

With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming.

X-Boost
Command Center
Live Update
RAMDisk

QUALITY & PROTECTION

BUILT ON EVERLASTING QUALITY

Using only the finest quality components and integrating the latest technological innovations delivers the best possible gaming and professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, high performance motherboard.

Steel Armor
Military Class 5
Gaming Certified

BIOS

A GAMERS’ BIOS

We made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance when gaming.

Easy/advanced mode
Convenient search
Hardware monitor

Ultrabook, Celeron, Celeron Inside, Core Inside, Intel, Intel Logo, Intel Atom, Intel Atom Inside, Intel Core, Intel Inside, Intel Inside Logo, Intel vPro, Itanium, Itanium Inside, Pentium, Pentium Inside, vPro Inside, Xeon, Xeon Phi, and Xeon Inside are trademarks of Intel Corporation in the U.S. and/or other countries.

© 2017 NVIDIA Corporation. All rights reserved. NVIDIA, GeForce , and NVIDIA Pascal are registered trademarks of NVIDIA Corporation in the U.S and other countries

Brand and product names mentioned are trademarks of their respective owners.
