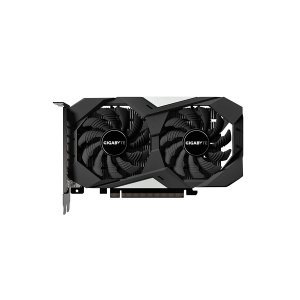

GIGABYTE GEFORCE GTX 1650 OC 4GB GDDR5 128-BIT GAMING GRAPHICS CARD
- Powered by GeForce GTX 1650 integrated with 4GB GDDR5
- Windforce 2x cooling system with alternate spinning fans
- Intuitive controls with AORUS engine
- 4GB 128-bit GDDR5, 2 x HDMI, 1 x DisplayPort, PCI Express 3.0 x16
- Powered by GeForce® GTX 1650
- Integrated with 4GB GDDR5 128-bit memory interface
- WINDFORCE 2X Cooling System with alternate spinning fans
- 80 mm unique blade fan
WINDFORCE 2X COOLING SYSTEM
WINDFORCE 2X cooling system features 2x 80mm unique blade fans, alternate spinning fan, and 3D active fan, together delivering an effective heat dissipation.
The GIGABYTE patent “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
|Specifications||Board Form = ATX 2 slot Fan/Heat Sink = WINDFORCE 2X System PSU Limitation (W) = 300 Tools = AORUS ENGINE GPU-TDP (W) = 53(Real) Total Graphics Power-TGP (W) = 75.00(Real) PCB Size (mm) = 152×95|
|Card size||H=36 L=191 W=112|

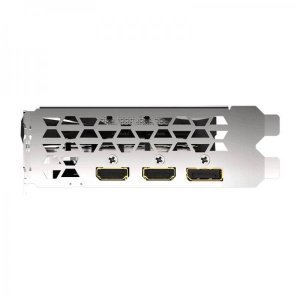

|I/O||HDMI(Gold Plated)x2 DP(Gold Plated)x1|
|Interface||PCI Express 3.0 x16|
|Memory Type||256 M x32 GDDR5|
|DirectX||DirectX 12 OpenGL 4.5|
|Note*||Price, feature and specifications are subject to change without notice.|
