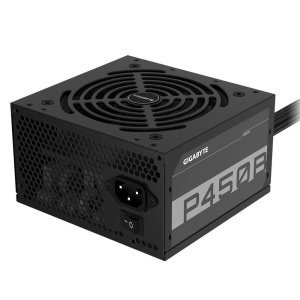

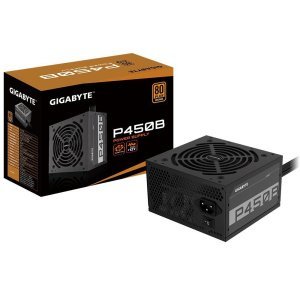

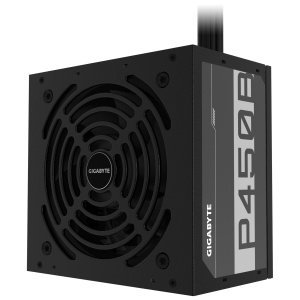

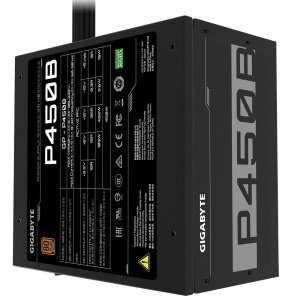

Gigabyte P450B power supply unit 450 W 20+4 pin ATX ATX Black
- 80 PLUS Bronze certified
- 120mm Silent Hydraulic Bearing (HYB) Fan
- Reliable flat cable
- Single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 3 years warranty (Adjusted according to different regions)
Original price was: ₹3,999.00.₹2,860.00Current price is: ₹2,860.00.
80 PLUS BRONZE CERTIFIED
80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
Reliable Flat Cable
P450B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case.
120mm Silent Hydraulic Bearing (HYB) Fan
120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
| Dimensions | 15 × 14 × 8.6 cm |
|---|---|
| Total power | 450 W |
| AC input frequency | 50 – 60 Hz |
| Power factor | 0.9 |
| Combined power (+3.3V) | 103 W |
| Combined power (+5V) | 103 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+12V) | 0.3 A, 36 A |
| Hold time | 16 ms |
| Power protection features | Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage |
| CPU power cable length | 60 cm |
| PCI Express connector | Y |
| ATX version | 2.31 |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| On/off switch | Y |
| Depth | 140 mm |
| AC input voltage | 100 – 240 V |
| Input current | 8 – 4 A |
| Combined power (+12V) | 3.6 W, 432 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+5V) | 15 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 85% |
| Motherboard power connector | 20+4 pin ATX |
| SATA power cable length | 500 mm |
| Floppy disk drive connector | Y |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Bearing technology | HDB |
| Product colour | Black |
| Fan diameter | 12 cm |
| Fan location | Top |
| Width | 150 mm |
| Height | 86 mm |
