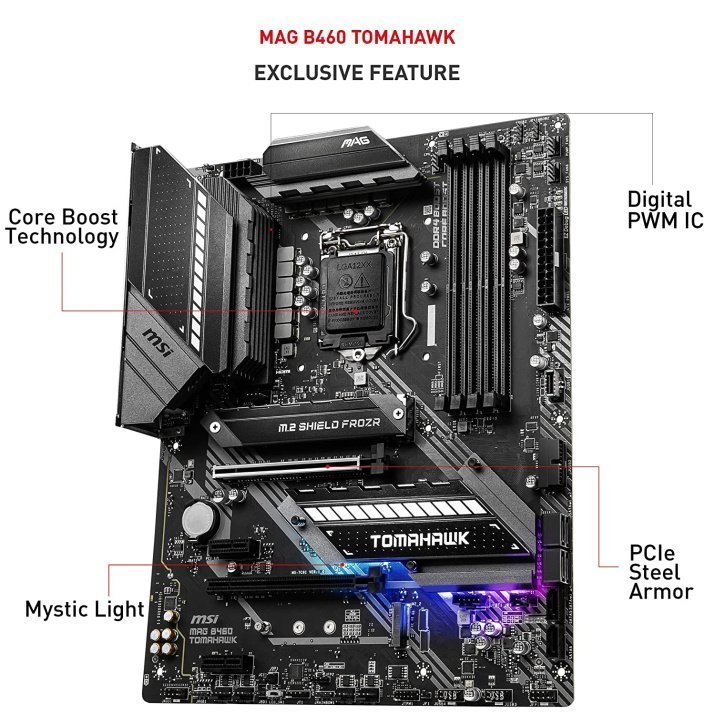

MSI MAG B460 Tomahawk Gaming Motherboard (ATX, 10th Gen Intel Core, LGA 1200 Socket, DDR4, CFX, Dual M.2 Slots, USB 3.2 Gen 2, 2.5G LAN, DP/HDMI, Mystic Light RGB)

CPU

Supports 10^th Gen Intel^® Core™ and Pentium^® Gold / Celeron^® processors for LGA1200 socket ^1 2

1. Please go to intel.com for compatibility information
2. Onboard graphics output are disabled when using the F SKU processors.

See supported processors

CHIPSET

Intel^® B460 Chipset

MEMORY

• 4x DDR4 memory slots, support up to 128GB ¹
• Intel^® Core^™ i7/i9
  • Supports up to DDR4 2933 MHz
• Intel^® Core^™ i5 (Below)
  • Supports up to DDR4 2666 MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT

• 1x PCIe 3.0 x16 slot (From CPU, PCI_E1), supports x16 mode
• 1x PCIe 3.0 x16 slot (From PCH, PCI_E3), supports x4 mode ¹
• 2x PCIe 3.0 x1 slots (From PCH)

1. PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot.

ONBOARD GRAPHICS

• 1x HDMI port, supports a maximum resolution of 4096×2160 @30Hz
• 1x DisplayPort, supports a maximum resolution of 4096×2304 @60Hz

STORAGE

Intel^® B460 Chipset

• 6x SATA 6Gb/s ports ¹
• 2x M.2 slots (Key M)
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices ¹
  • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices ²
  • Intel^® Optane™ Memory Ready for the M2_2 slot only ³
  • Supports Intel^® Smart Response Technology for Intel Core™ processors

1. SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
2. PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot.
3. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel^® B460 Chipset

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

AUDIO

Realtek^® ALC1200 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1x Realtek^® RTL8125B 2.5Gbps LAN controller
• 1x Intel^® I219V 1Gbps LAN controller

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 2x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1x TPM module connector
• 1x Clear CMOS jumper
• 1x TBT connector¹

1. Thunderbolt card need support RTD3

BACK PANEL PORTS

LED FEATURES

• 1x EZ LED Control switch
• 4x EZ Debug LED

I/O CONTROLLER

NUVOTON NCT6687 Controller Chip

HARDWARE MONITOR

• CPU/System temperature detection
• CPU/System fan speed detection
• CPU/System fan speed control

FORM FACTOR

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

BIOS FEATURES

• 1x 128 Mb flash
• UEFI AMI BIOS
• ACPI 6.2, SM BIOS 3.2 ∙Multi-language

BOX CONTENT

1. MSI^® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
