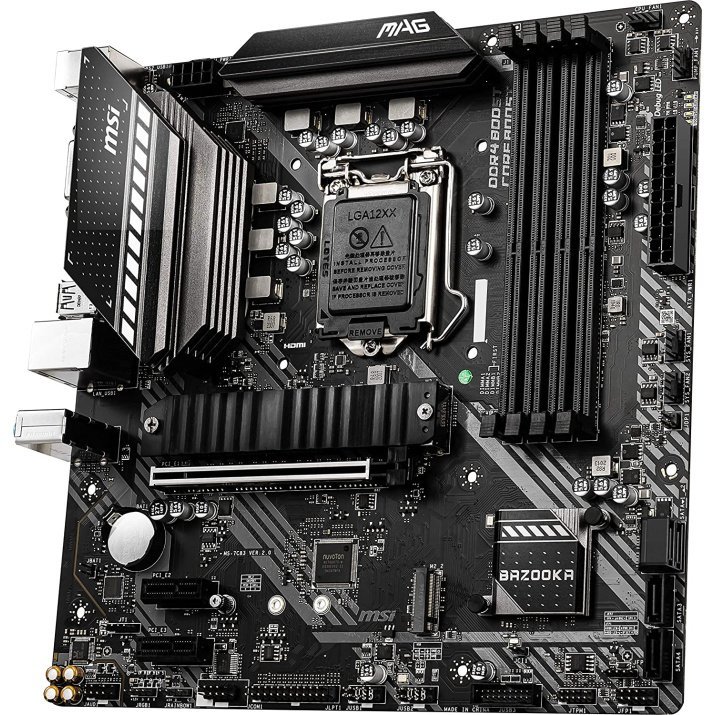

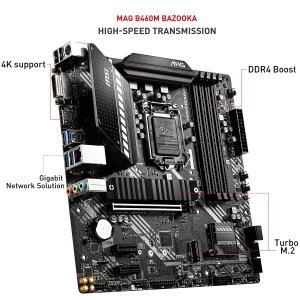

MSI MAG B460M Bazooka Gaming Motherboard (mATX, 10th Gen Intel Core, LGA 1200 Socket, DDR4, Dual M.2 Slots, USB 3.2 Gen 1, 2.5G LAN, DVI/HDMI)

CPU

Supports 10^th Gen Intel^® Core™ and Pentium^® Gold / Celeron^® processors for LGA1200 socket ^1 2

1. Please go to intel.com for compatibility information
2. Onboard graphics output are disabled when using the F SKU processors.

See supported processors

CHIPSET

Intel^® B460 Chipset

MEMORY

• 4x DDR4 memory slots, support up to 128GB ¹
• Intel^® Core^™ i7/i9
  • Support DDR4-2933 Memory (Max.)
• Intel^® Core^™ i5 (Below)
  • Supports DDR4-2666 Memory (Max.)
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT

• 1x PCIe 3.0 x16 slot (from CPU)
• 2x PCIe x1 slots (from PCH)

ONBOARD GRAPHICS

• 1x HDMI port, supporting a maximum resolution of 4096×2160 @ 30Hz, 2560×1600 @ 60Hz
• 1x DVI-D port, supports a maximum resolution of 1920×1200 @ 60Hz

STORAGE

Intel^® B460 Chipset

• 4x SATA 6Gb/s ports ¹
• 2x M.2 slots (Key M)
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices ¹
  • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
  • Intel^® Optane™ Memory Ready for the M2_2 slot only ²
  • Supports Intel^® Smart Response Technology for Intel Core™ processors

1. SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel^® B460 Chipset

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

AUDIO

Realtek^® ALC892/ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Realtek^® RTL8111H Gigabit LAN Controller

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water pump connector
• 2x 4-pin system fan connectors
• 1x front panel audio connector
• 2x system panel connectors
• 1x parallel port connector
• 1x serial port connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x 4-pin RGB LED connector
• 1x 3-pin RAINBOW LED connector
• 1x TPM module connector

BACK PANEL PORTS

LED FEATURES

• 4x EZ Debug LED

I/O CONTROLLER

NUVOTON NCT6687 Controller Chip

HARDWARE MONITOR

• CPU/System temperature detection
• CPU/System fan speed detection
• CPU/System fan speed control

FORM FACTOR

• mATX Form Factor
• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

BIOS FEATURES

• 1x 128 Mb flash
• UEFI AMI BIOS
• ACPI 6.2, SM BIOS 3.2
• Multi-language

BOX CONTENT

1. MSI^® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
