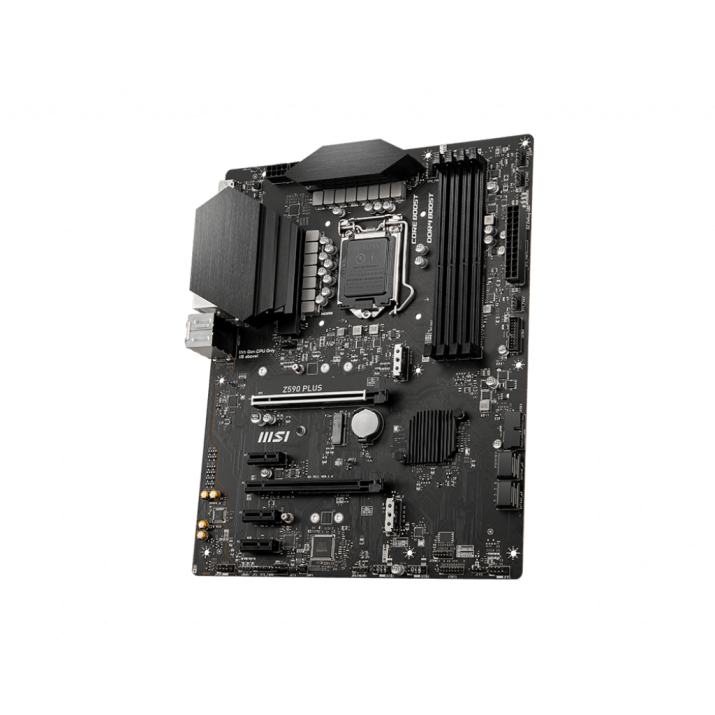

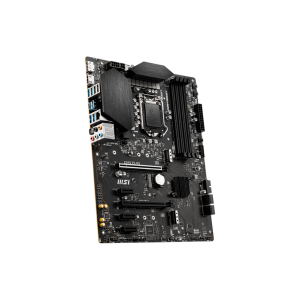

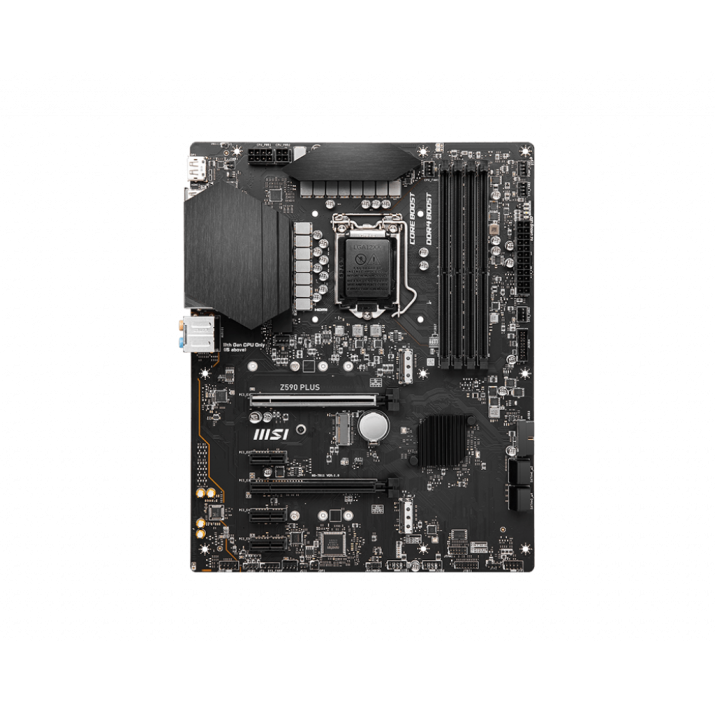

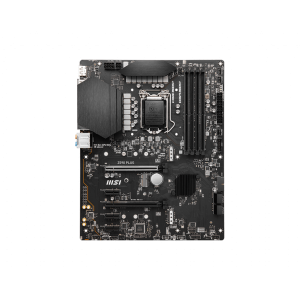

MSI Z590 PLUS MOTHERBOARD

PROCESSOR

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors¹

Processor socket LGA1200

1. Please go to intel.com for compatibility information

See supported processors

CHIPSET

Intel^® Z590 Chipset

MEMORY

• 4x DDR4 memory slots, support up to 128GB ¹
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR)¹
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5333 MHz
    • 1DPC 2R Max speed up to 4700+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory

EXPANSION SLOT

• 2x PCIe x16 slots
  • PCI_E1 slot (From CPU)
    • Supports up to PCIe 4.0 for 11th Gen Intel^® CPU
    • Supports up to PCIe 3.0 for 10th Gen Intel^® CPU
  • PCI_E3 slot (From Z590 chipset)
    • Supports up to PCIe 3.0 x4 speed
• 3x PCIe 3.0 x1 slots (From Z590 Chipset)
• 1x M.2 slot with E key for WiFi module only (M2_3)

ONBOARD GRAPHICS

• 1x HDMI 1.4 with HDR port, supports a maximum 4096×2160 30Hz ¹²
• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz ¹

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

MULTI-GPU

• Supports 2-Way AMD^® CrossFire^™ Technology

STORAGE

• 4x SATA 6Gb/s ports (From Z590 Chipset)
• 2x M.2 slots (Key M)
  • M2_1 slot (From Processor)
    • Available only on 11th Gen Intel^® CPU
    • Supports up to PCIe 4.0×4
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (from Z590 chipset)
    • Support up to PCIe 3.0×4
    • Support up to SATA 6Gb/s
    • Support 2242/ 2260/ 2280 storage devices

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AUDIO

Realtek^®ALC897 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1x Intel^® KTI225V 2.5Gbps LAN controller

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x M.2 slot (E-Key)
• 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 4x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
• 1x TBT connector

LED FEATURE

• 1x 4-pin RGB LED connector
• 1x 3-pin RAINBOW LED connector (for Z590 PLUS only)
• 4x EZ Debug LED (for Z590 PLUS only)

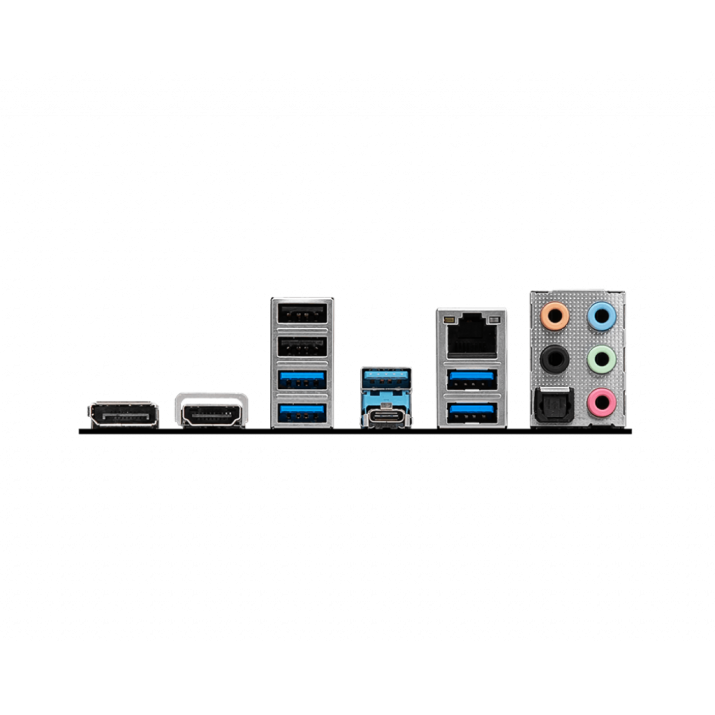

BACK PANEL PORTS

DIMENSIONS

• ATX Form Factor
• 12 x 9.6 in. (30.5 cm x 24.4 cm)

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows^® 10 64-bit

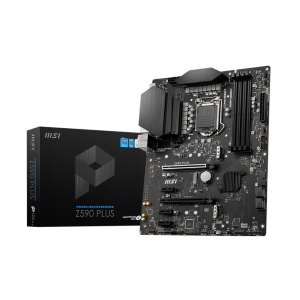

BOX CONTENT

1. MSI^® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
